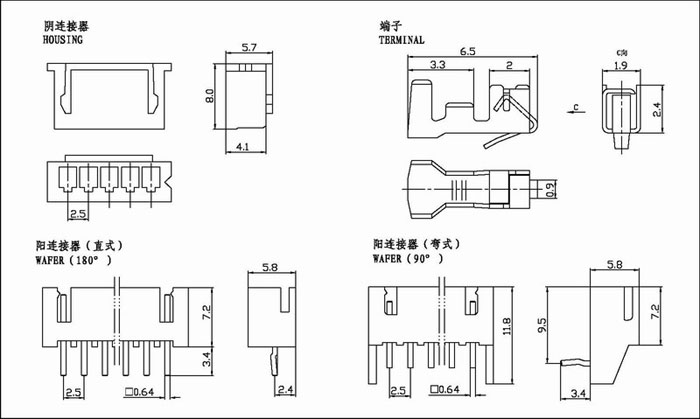

Wire to Board Connector 2.5mm XH

Pitch-Mating Interface(in): 098"
Pitch-Mating Interface(mm): 2.5mm
Ciruits: 2~15
Number of rows: 1
Applicable wire: 28AWG~22AWG
Temperature Range-Operation :-25℃~+85℃
Rated voltage: 250V AC,DC
Rated current: 2A
Contact resistance: ≤0.01
Insulation resistance: ≥1000M
Plastic material: Nylon UL94V-2
Terminal material: Phosphor Bronze (Tin plated)
